Name of components and information displayed on the screen (PowerShot SX610 HS)

19-Dec-2014
8202421300

Solution

Camera
PowerShot SX610 HS

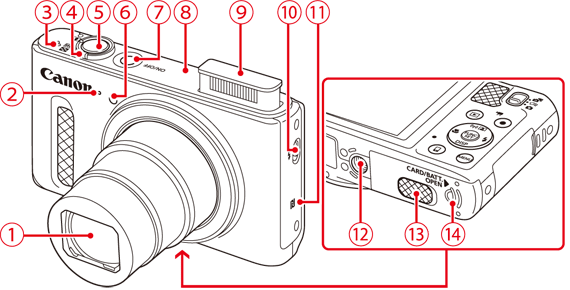

LensWi-Fi antenna area
MicrophoneFlash
Speaker[ (Flash pop up)] switch
Zoom lever
Shooting: [ (telephoto)] / [ (wide angle)]
Playback: [ (magnify)] / [ ](index)]
(N-Mark)*
Shutter buttonTripod socket
LampDC coupler terminal cover
Power buttonMemory card/battery cover
* Used with NFC features.

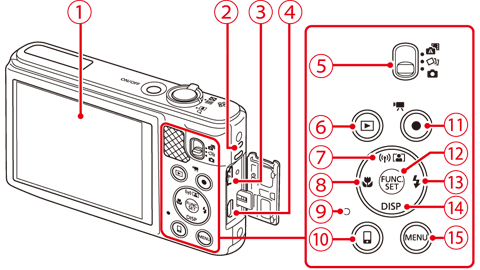

Screen (LCD monitor)Indicator
Strap mount[ (Mobile Device Connection)] button
AV OUT (Audio/video output) / DIGITAL terminalMovie button
HDMI™ terminalFUNC. (Function) / SET button
Mode switch[ (Flash)] / Right button
[ (Playback)] button[ (Display)] / Down button
[ Auto Zoom] / [ (Wi-Fi)] / Up button[ (Menu)] button
[ (Macro)] / Left button

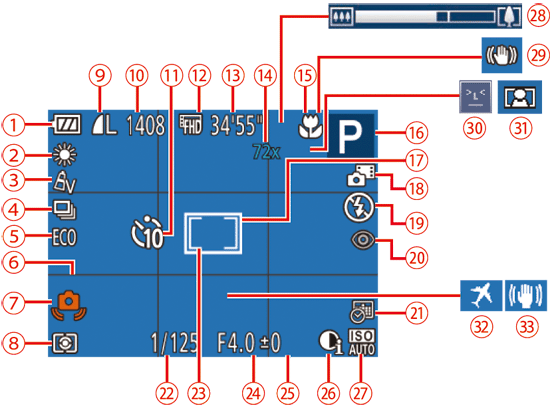

Shooting (Information Display)


Battery levelHybrid Auto mode
White balanceFlash mode
My ColorsRed-eye correction
Drive modeDate stamp
Eco modeShutter speed
Grid linesSpot frame
Camera shake warningAperture value
Metering methodExposure compensation level
Still image compression, Recording pixel settingi-Contrast
Recordable shotsISO speed
Self-timerZoom bar
Movie qualityIS mode icon
Remaining timeBlink detection
Zoom magnification, Digital tele-converterAuto zoom
Focus rangeTime zone
Shooting mode, Scene iconImage stabilization
AF Frame

* In [ ] mode, indicates the number of shots available.

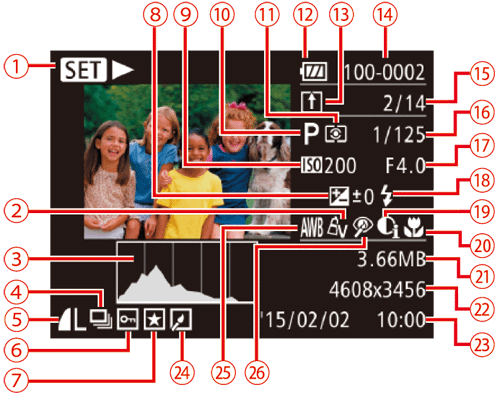

Playback (Detailed Information Display)


NOTE
  • Some information may not be displayed when viewing images on a TV.
Movies, Highspeed burstFolder number - File number
My ColorsCurrent image no. / Total no. of images
HistogramShutter speed (still images), Image quality / Frame rate (movies)
Group playbackAperture value
Compression (image quality) / Recording pixel setting, MP4 (movies)Flash
Protectioni-Contrast
FavoritesFocus range
Exposure compensation levelFile size
Still images: Recording pixel setting
Movies: Playback time
ISO speed, Playback speedShooting date/time
Shooting modeImage editing
Metering methodWhite balance
Battery levelRed-eye correction
Image Sync
