Name of components and information displayed on the screen (IXUS 160 / PowerShot ELPH 160)
Solution
IXUS160 / PowerShot ELPH 160
 | Lens |  | Microphone |
 | Speaker |  | Flash |
 | Zoom lever Shooting:  (telephoto)/ (wide angle)Playback:  (magnify)/ (index) |  | Tripod socket |
 | Shutter button |  | Memory card/battery cover |
 | Lamp |  | DC coupler cable port |
 | Power button |  | Strap mount |
| Screen (LCD monitor) | |  (Help)button |
| AV OUT (Audio/video output) / DIGITAL terminal | | Movie button |
|  (Playback) button | | FUNC./SET button |
|  (Auto)/ (Single-image erase)/ Up button | |  (Flash)/ Right button |
|  / Left button | |  (Display)/ Down button |
| Indicator | |  button |

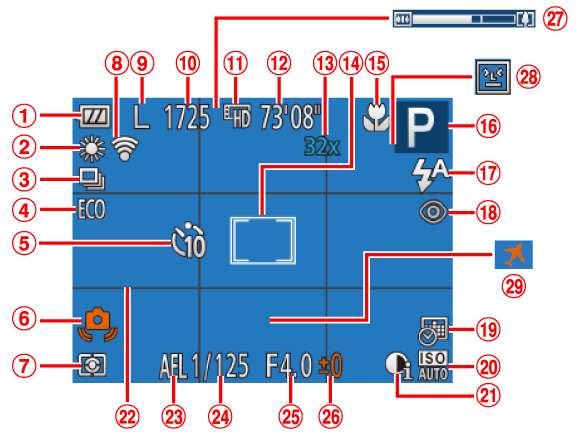

| Battery level |  | Shooting mode, Scene icon |
| White balance |  | Flash mode |
| Drive mode |  | Red-eye correction |
| Eco mode |  | Date stamp |
| Self-timer |  | ISO speed |
| Camera shake warning |  | i-Contrast |
| Metering method |  | Grid lines |
| Eye-Fi connection status |  | AE lock, FE lock |
| Resolution |  | Shutter speed |
| Recordable shots |  | Aperture value |
| Movie quality |  | Exposure compensation level |
| Remaining time |  | Zoom bar |
 | Digital zoom magnification |  | Blink detection |
 | AF frame, Spot AE point frame |  | Time zone |
 | Focusing range, AF lock |
NOTE
- Some information may not be displayed when viewing images on a TV.

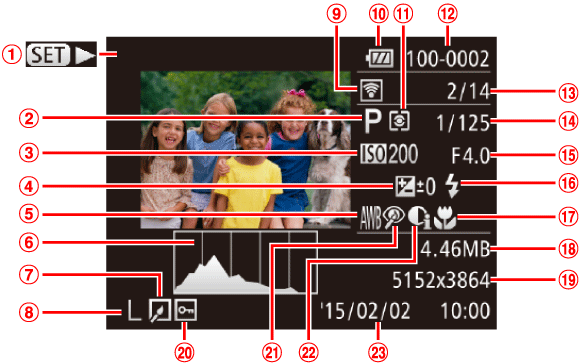

| Movies | | Current image no. / Total no. of images |
| Shooting mode | | Shutter speed (still images), Image quality / Frame rate (movies) |
| ISO speed, Playback speed | | Aperture value |
| Exposure compensation level | | Flash |
| White balance | | Focusing range |
| Histogram | | File size |
| Image editing | | Still images: Resolution Movies: Playback time |
| Resolution, MOV (movies) | | Protection |
| Transferred via Eye-Fi | | Red-eye correction |
| Battery level | | i-Contrast |
| Metering method | | Shooting date/time |
| Folder number - File number |
