 | Lens |  | DC coupler terminal cover |
 | Shutter ring |  | Tripod socket |
 | Zoom ring |  | Memory card cover |
 | Microphone |  | DIGITAL terminal |
 | Flash/lamp (front) |  | USB charge lamp |
 | Strap mount |  | [  (Mobile Device Connection)]button |
 | Power button/power lamp |  | Mode switch |
 | [  (Playback)] button |  | Speaker |
 | Screen (LCD monitor) |  |  (N-Mark)* |
 | Battery cover |  | Wi-Fi antenna area |

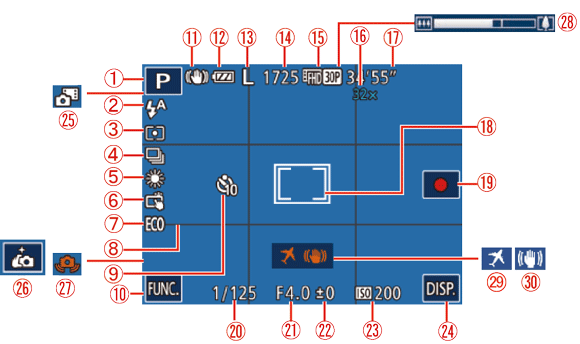

| Shooting mode, Scene icon | | Zoom factor |
| Flash mode | | Remaining time |
| Metering method | | Spot AE point frame |
| Drive mode | | Movie recording |
| White balance | | Shutter speed |
| Touch Shutter |  | Aperture value |
| Eco mode |  | Exposure compensation level |
| Grid lines |  | ISO speed |
| Self-timer |  | DISP. (Display) |
|  (Function) |  | Hybrid Auto mode |
| IS mode icon |  | Self portrait shortcut icon |
| Battery level |  | Camera shake warning |
| Still image resolution |  | Zoom bar |
| Recordable shots* |  | Time zone |
| Movie resolution |  | Image stabilization |
] mode, indicates the number of shots available.

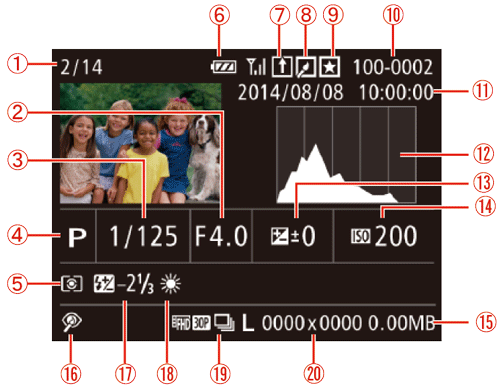

| Playback image no. / Total no. of images | | Shooting date/time |
| Aperture value | | Histogram |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Exposure compensation level |
| Shooting mode | | ISO speed, Playback speed |
| Metering method | | File size |
| Battery level | | Red-eye correction |
| Image Sync | | Flash |
| Image editing | | White balance |
| Favorites | | Resolution, MOV (movies) |
| Folder number - File number | | Still images: Resolution Movies: Playback time |
