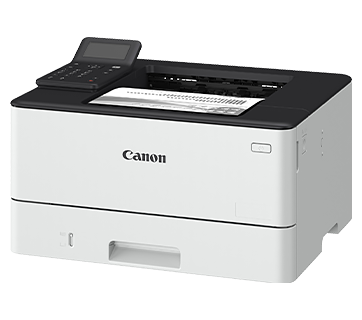

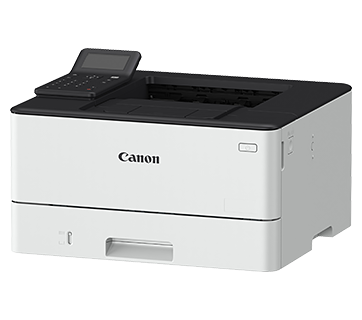

imageCLASS LBP246dw II
imageCLASS LBP246dw II
imageCLASS LBP246dw II
Experience hassle-free printing, expandable paper input capacity, and versatile connectivity. With PCL compatibility and mobile printing feature, it is the perfect device to cater to your business printing needs.
Promotion
Key Features
Features
6.9 cm LCD Display
Configure the printer settings easily with the 6.9 cm LCD display. Information can be displayed at a glance, facilitating easy device management and maintenance.
Flexible Connectivity
Connect the printer to your office network wirelessly or utilise the printer’s built-in Access Point Mode to directly connect to mobile devices without additional router.
Auto Duplex Printing
Print on both sides to effectively lower paper usage while reducing carbon footprint and operating costs.
Expandable Paper Capacity
Expand paper handling capability up to 900 sheets by adding an optional paper feeder.
Minimal Maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. Standard and high yield option Cartridge 070 and Cartridge 070H are available to meet the different requirement in print volume.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.
Support Multiple Printing Environments
In addition to Canon's proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are supported to ensure seamless integration with a wide range of business applications.
Related Pages
Related Reads
Specifications
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed | |
| A4*1 | 40 pages per minute |
| Letter*1 | 42 pages per minute |
| 2-Sided | 33 images per minute (A4) / 35 images per minute (Letter) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 s |
| First Print Out Time (FPOT) (Approx.)*2 | |
| A4 | 5 s |
| Recovery Time (From Sleep Mode) | 4 s or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins |
Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | N/A |
Paper Handling
| Input Tray Capacity (Plain Paper, 80 g/m²) | |
| Standard | |
| Cassette | 250 sheets |
| Multi-Purpose Tray | 100 sheets |
| Optional | |
| Paper Feeder | 550 sheets |
| Maximum | 900 sheets (Standard + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size | |
Cassette / Paper Feeder |
A4, A5, A6, Legal, Letter, Foolscap, Indian Legal,
Note: The cassette will not fully close when loaded with paper longer than A4 size.
|
Multi-Purpose Tray |
A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), |
2-Sided Printing |
A4, Legal, Letter, Foolscap, Indian Legal, |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight | |
Cassette / Paper Feeder |
60 - 120 g/m² |
Multi-Purpose Tray |
60 - 199 g/m² |
Connectivity & Software
| Standard Interfaces | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol | |
| LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) | |
| TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Compatible Operating System*3 | Windows®10/11, Windows® Server 2016/2019/2022/2025,
macOS 10.15 or later, Linux, Chrome OS |
| Other Features | Department ID, Secure Print |
| Available Software | Printer Driver, Toner Status |
General
| Device Memory | 1 GB |
| Display | 6.9 cm LCD |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) | |
| Operation | 480 W (max. 1,250 W) |
| Standby | 6 W |
| Sleep | 0.9 W |
| Operating Environment | |
| Temperature | 10 - 30°C |
| Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle*4 | 80,000 pages |
| Dimensions (W x D x H) (Approx.) | 399 x 373 x 249 mm |
| Weight*5 (Approx.) | 8.8 kg |
| Toner Cartridge*6 | |
| Standard | Cartridge 070: 3,000 pages (Bundled: 3,000 pages) |
| High | Cartridge 070H: 10,200 pages |
Optional Accessories
| Paper Feeder | Cassette Feeding Unit-AH1 (550 sheets) |
| Barcode Printing Kit | - |
- Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
- First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
- The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
- Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
- Excluding toner cartridge.
- Toner cartridge yield is in accordance with ISO/IEC 19752.
