Canon Announces its First Virtual Reality Video Production System
The EOS VR System features high quality 180-degree VR video production and efficient workflow
India, 06 October 2021 – Canon today announced the launch of the EOS VR System, a new virtual reality (VR) video production system. The system includes one dedicated lens and two computer software applications, which will be available from end-December 2021.
VR is increasingly used in many industries including entertainment, tourism, and education. With the increasing market demand for VR, Canon is leveraging its optical technologies nurtured through the development and production of the EOS interchangeable lens camera system, to establish a new VR video production system that realises high-quality images alongside an efficient production workflow.
The new EOS VR System consists of mirrorless cameras, a dedicated lens, and computer software. Users can capture VR videos by attaching the dedicated lens to the camera, and then utilize the computer software to convert the resulting image files to a standard VR file format, making the post-production process easy.
Commenting on this launch, Mr. Manabu Yamazaki, President and CEO, Canon India said, “We are constantly pushing technological boundaries by anticipating both current and future needs. With the launch of Canon EOS VR System, we are bringing the power to create incredible 180°VR content in up-to 8K size output. This is a game changing product for the imaging industry where professional content creators can create high quality VR content using our easy-to-use workflows.”
Mr. C Sukumaran, Director- Consumer Systems Products and Imaging Communication Business, Canon India further added, “The EOS VR System has been developed by nurturing Canon’s optical technologies and EOS interchangeable lens camera system. It promises high-quality images coupled with an efficient production workflow. When attached to the EOS R5, the new RF5.2mm f/2.8L Dual Fisheye lens will enable users to harness the camera’s ultra-high definition 8K recording capabilities and produce an immersive feel like never experienced before.”
By establishing this system, Canon hopes to cater to the wide-ranging needs of various users, be it VR image creators, production houses, or new users just starting their VR video production journey.
A Dedicated Lens that Achieves High-quality 3D 180-degree VR Images
The new RF5.2mm f/2.8L Dual Fisheye lens is a dedicated RF lens equipped with two fisheye lenses, which produce parallax effect that can be used to create 3D 180-degree VR images. When attached to the EOS R5 mirrorless camera, the lens enables users to harness the camera’s 8K recording capabilities to produce ultra-high-definition video with an immersive feel. As special lens coatings are used, shooting in backlit conditions becomes a breeze.
An Efficient Workflow, From Shooting to Post-production
The light rays that enter each “eye” of the RF5.2mm f/2.8L Dual Fisheye lens are captured by a sole CMOS image sensor. This removes the need for certain parts of the traditional VR production workflow, such as aligning and syncing camera positions before the shoot or stitching images together in post-production, resulting in greater efficiency. Depending on their post-production environment, users can choose to convert their videos into VR format using either the EOS VR Utility computer software or the EOS VR Plugin for Adobe Premiere Pro4,5, which further support the post-production process.
|Product name||MRP ( including taxes)||Availability|
|RF5.2mm f/2.8L Dual Fisheye||INR 179 995.00/U||End December 2021|
|EOS VR Utility||Subscription service4||End December 2021|
|EOS VR Plugin for Adobe Premiere Pro||Subscription service4||End December 2021|
Key Features of the RF5.2mm f/2.8L Dual Fisheye
1. Achieves 3D 180-degree VR video with the signature L-lens high quality
- Equipped with 2 fisheye lenses, the lens enables capturing 180-degree VR footage in 3D by using the parallax between the left and right images.
- 180-degree VR footage has half the field of view of 360-degree footage. This reduces the volume of data generated and produces high-definition footage that is easier to handle, excellent for creating highly realistic images. Camera operators can also focus on shooting with the knowledge that they will not be captured in-frame.
- This is an L (Luxury) lens, designed and built to provide the highest standards of depictive performance, operability, and durability. The large f/2.8 maximum aperture enables the capture of bright, high-quality images.
- High image quality is achieved by harnessing the advantages of the RF mount’s short back focus system alongside a lens configuration where each fisheye lens incorporates two effectively placed UD lens elements6 . The lens configuration also optimises the bending of light rays, achieving a natural parallax effect with a 60mm base length.
- The left and right lenses are each equipped with an Electro-magnetic Diaphragm (EMD) that electronically controls the aperture diameter.
- The lens features a gelatin filter holder that enables an ND filter to be installed. This makes it possible to control exposure even during daytime outdoor shoots and other high-contrast situations where the shutter speed might unintentionally speed up and helps to ensure seamless video shooting.
- Dust- & Drip-resistant7 sealing is used on the mount and focus ring.
- SWC (Subwavelength Structure Coating), a special coating, is applied. Numerous nano-sized wedge-shaped structures smaller than the wavelength of visible light are lined up on the concave surface of the frontmost lens element to control internal light reflection. This reduces ghosting, which is the manifestation of internal light reflection on images. Lenses used for VR imaging tend to have a larger incidence angle, and the coating makes it easier to shoot with them in backlit conditions.

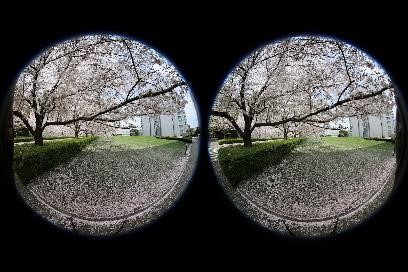

Image captured by dual fisheye lenses
2. Shoots high-quality footage with the 8K-ready EOS R5 mirrorless camera
- Using the lens with the EOS R5 enables the output of high-definition 8K 180-degree VR footage, achieving a strong immersive feel.
- The large f/2.8 maximum aperture of the lens, combined with the highly-sensitive CMOS image sensor and powerful noise processing capabilities of the DIGIC X image processor on the EOS R5, achieve high-quality footage even in low light situations or scenes where light is intentionally reduced for creative expression.
3. Realises an efficient workflow from shooting to post-production
- The light that enters each “eye” of the lens can be recorded with just one CMOS image sensor. This removes the need to adjust multiple camera positions and synchronizing settings before the shoot, or to stitch images together in post-production, thereby streamlining the production workflow.
- To conduct remote shooting, which is often necessary in VR image production, users can use either EOS Utility8, a software that allows them to change camera settings and transfer images from their computer, or Camera Connect9 , a smartphone app that lets them check images and change camera settings using their smartphone.
Key Features of the 2 Computer Software Applications

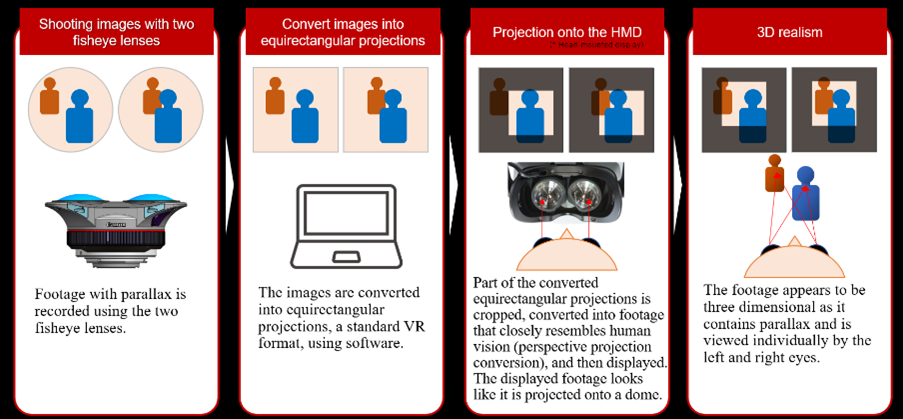

Before viewers can view the 3D VR footage on a head-mounted display (HMD), the footage captured by the camera must first be converted into a VR file. The conventional VR image production workflow therefore consists of 4 stages: shooting, checking, post-editing, and file conversion. Under Canon’s VR imaging system, images are captured using just one camera with one CMOS image sensor, rendering the parts of the workflow that were necessary with a two-camera system—such as aligning the positions and synchronising the settings of the left and right cameras before the shoot—redundant. It is also no longer necessary to stich footage before file conversion. Additionally, when users convert files with either the EOS VR Utility computer software or the EOS VR Plugin for Adobe Premiere Pro dedicated plugin for Adobe Premiere Pro (sold separately), they can also automatically straighten images and correct lens parallax during conversion, improving workflow efficiency.

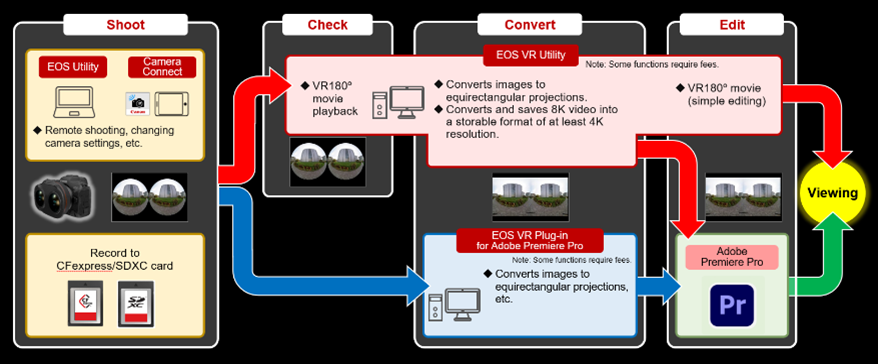

Diagram illustrating the VR image production workflow
The two conversion software applications both support the conversion of images into equirectangular projections, a standard VR format. EOS VR Utility supports image conversion and post-editing, allowing the flexibility to adjust the image quality and file format according
to post-processing and display environments. Meanwhile, EOS VR Plugin for Adobe Premiere Pro enables file conversion and post-editing to be done under one roof within the Adobe Premiere Pro video editing software.
EOS VR Utility (paid)
- A computer software application that lets users convert images into equirectangular projections (a standard VR image format) and perform simple editing on them.
- Supports toggling between images/footage shot by the left and right lenses. Also supports toggling between circular fisheye and equirectangular displays.
- Supports image straightening/parallax correction for compatible lenses
- Supports playback and basic cutting of 180-degree VR images on computer monitors.
- Videos recorded in 8K can be converted and saved in a different size, file specification, or format.
- LUTs (Lookup Tables) can be applied to videos recorded in Canon Log mode.
- Supports output to DPX (Digital Picture Exchange) and Apple ProRes for NLE (non-linear editing) purposes.
EOS VR Plugin for Adobe Premiere Pro (paid)
- A computer software plugin for video creators who edit with Adobe Premiere Pro.Supports swapping the left and right images and converting images into equirectangular projections (a standard VR image format).
- Supports image straightening/parallax correction for compatible lenses
For reference: Exhibition at InterBEE 2021
The VR imaging system will be exhibited at the Canon booth at InterBEE 2021, a professional exhibition for the audio, imaging, and broadcasting industries that will be held in an online-offline hybrid from 17 November (Wed) to 19 November (Fri) 2021.
Market Trends for VR Imaging Equipment
The VR market is growing, especially in the consumer entertainment and corporate education and training sectors. There is a wide range of VR applications. For example, it is used in the gaming and tourism sectors to provide simulated experiences, in the real estate sector to enable virtual tours of rooms, and in site inspection to guide workers through work procedures. In recent years, the sports industry has also been disseminating more VR videos. The growing range of services utilising VR means higher demand for the production and distribution of large volumes of high-quality VR content, hence also increasing the demand for the imaging equipment to support VR production. (According to research by Canon.)
|RF5.2mm f/2.8L Dual FIsheye|
|Focal Length||5.2 mm|
|Minimum Focusing Distance||0.2 m|
|Lens Construction||12 elements in 10 groups|
|Filter Size Diameter||Gelatin filter can be mounted on the back of the lens|
|Special Coating||Subwavelength Structure Coating|
|Projection Type||Equidistant projection|
|IS (CIPA Standard Correction Effect)||-|
|Maximum Diameter, Height and length||approx. 121.1 mm × 83.6 mm x 53.5 mm|
About Canon Group
Ever since its foundation in 1937, Canon is guided by the 'Kyosei' philosophy of living and working together for the common good. Canon strives to create and deliver world-class products, becoming a top global corporation by diversifying into new business fields throughout the world. Focusing on optical technologies, Canon produces office equipment, consumer and professional imaging devices, network cameras, healthcare, and industrial equipment. Through the close connection between its global head office in Tokyo and regional headquarters in America, Europe, Asia, Oceania, and regional headquarters in Japan, Canon combines its global and local operations organically. In 1996, Canon launched its Excellent Global Corporation Plan to serve society with advanced technologies and become a trustworthy and responsible corporate citizen. The year 2016 was the first year of Phase 5 of the Plan. Currently, Canon boasts a strong global presence of 376 subsidiaries all over the world, supported by 197,776 employees. (Data as of December 31, 2017)
About Canon India
Canon India Pvt. Ltd. is the sales and marketing subsidiary of Canon Inc., a world leader in imaging technologies. Set up in 1997, Canon India markets a comprehensive range of sophisticated contemporary digital imaging products and solutions in India. The company today has offices in 10 cities across India with warehousing facilities at 6 locations and employs over 1000 staff and over 850 channel partners. Canon India enjoys a vast retail presence across the country through Canon Image Square (CIS) stores, PIXMA Zones and BIS Lounges. Canon India’s service reach extends to over 600 towns covering 18,607 PIN codes across India - which comprises of 169 Camera collection points, 16 Camera repair centers, 283 Printer repair centers, 191 Copier, Scanner and Large Format Printer Sales & Service dealers (Data as of July 22, 2021).
In sync with its corporate tagline- ‘Delighting You Always’, reinforced by World-class technology, Canon offers an extended product portfolio, including Digital Production Printers, Large Format Printers, Commercial Printers, Multi-Functional Devices, Managed Document Services, Inkjet & Laser Printers, Document and Cheque Scanners, Digital Cameras, DSLRs, Mirrorless cameras, Cinematic Imaging Products, Surveillance cameras and Medical Imaging products catering to the multiple market segments of consumer, SME, B2B, Commercial, Government & PSUs.
 Current compatible camera: EOS R5. Requires firmware update, to be available from early December 2021.
 VR videos that have a 180-degree field of view. A VR video format commonly used on video distribution platforms such as YouTube.
 8K resolution fisheye video footage is recorded into the camera.
 For trial purposes, still images and videos not more than 2 min long may be converted into VR format free of charge. A paid subscription plan is necessary for full use of the features beyond the trial. Compatible with Windows/ macOS.
 Plugin: A software that expands the features of an application. Supports Adobe Premiere Pro Ver. 14.5 and above.
 Lens elements that use UD (Ultra low Dispersion) glass.
 Built to resist water droplets but cannot completely prevent the infiltration of water droplets.
 Compatible with Windows/ macOS. Requires update to Ver.3.14.30, to be released in early December 2021.
 Compatible with iOS/ iPad OS/ Android. Requires update to Ver.2.8.20, to be released in early December 2021.
